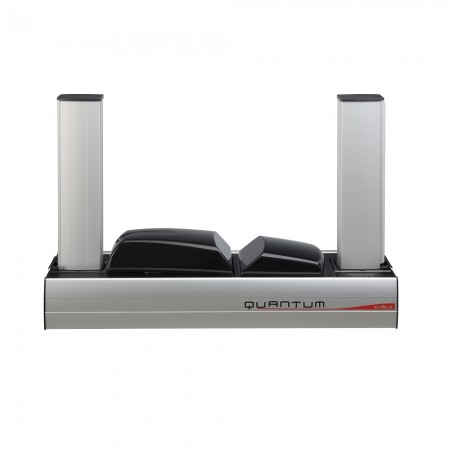

Evolis Quantum 2 - Plus Production/Backup Packs
Part Number: QTM306GRH-BS000-MB1
...
Code: QTM306GRH-BS000-MB1
Code: QTM306GRH-BS000-MB1
Evolis QTM306GRH-BS000-MB1 Quantum 2 Double Sided Card Printer - Plus Production/ Backup Packs
Evolis Quantum 2 is a dual sided card printer that is designed for the use of printing and encoding large quantities of cards. Benefits from 500 card capacity input and output hoppers to cater for large print runs. The hoppers are interchangeable in seconds and has a 20 card reject tray for cards with an error encoding. It can print 1000 cards per hour in monochrome and 125 cards per hour in colour. It is able to print on cards from 30mil to 40mil with high resolution printing and can encode Magstripe, Smart and Contactless cards.
There is a 2- line LCD display and status LED for printing and encoding unit monitoring. The printer is entirely protected against dust and has self-cleaning system to ensure spotless card cleaning on both sides and can prolong the life of your printhead.
Quantum 2 Printer Features:
- 2 Line LCD display
- Interchangeable 500 card capacity hoppers
- 20 card reject hopper
- Aluminium body, black plastic covers
- Edge to edge, dual sided printing
- Self cleaning system
- High resolution printing
- Magnetic, Smart Contact and contactless encoding
- Quantum production pack
- Quantum backup pack
- Detachable Hopper with capacity of 500 cards
Specification
| Barcode | 0793720495101 |
|---|---|
| Compatible Printers | Evolis Quantum 2 |
| Brand | Evolis |
| Manufacturers Part Number | QTM306GRH-BS000-MB1 |
| Printer Type | Double Sided |
| Printer Size | Without hoppers : 215 mm (H) x 850 mm (L) x 300 mm (W) With hoppers : 567 mm (H) x 850 mm (L) x 300 mm (W) |
| Printer Display | 2-line LCD display and status LED for printer and encoding unit monitoring |
| Printer Weight | 21,7 kg / 47,8 lbs (18,3 kg / 40,3 lbs without hoppers) |

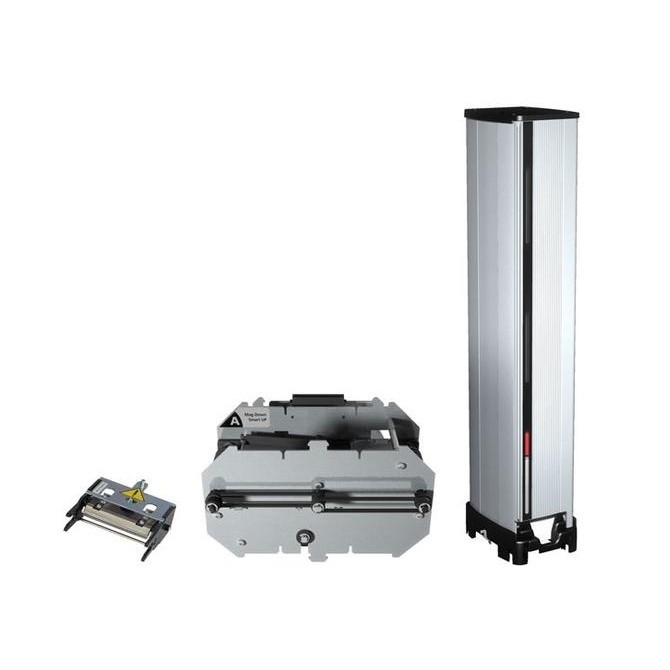

| Printer Options | Quantum Production Pack: 1 detachable card hopper, 2 cleaning rollers, 3 boxes of cleaning material Quantum Backup Pack: 1 printing head kit, 1 Up/Down encoding module, 1 detachable card hopper Detachable hopper with a capacity of 500 cards (0.76 mm - 30 |
| Security Options | Optional Locking system to secure access to blank cards, ribbons, films and rejected cards. |
| Card Size | ISO CR-80 - ISO 7810 (53.98 mm x 85.60 mm - 3.375” x 2.125”) |
| Card Types | All PVC, Composite PVC cards, PET, ABS1 and special varnished 1 cards. 1 - Under specific conditions |
| Card Thickness | From 0.76 mm (30 mil) to 1 mm (40 mil) |
| Printing Speeds | olor 1 side (YMCKO): more than 150 cards/hour Color 2 sides (YMCK0-K): 115 cards/hour Monochrome 1 side full card: more than 1000 cards/hour |
| Input Card Cartridge Capacity | 500 cards (0.76 mm - 30 mil) |
| Output Hopper Card Capacity | 500 cards (0.76 mm - 30 mil) |
| Colour Capability | Color dye sublimation and monochrome thermal transfer |
| Operating Systems Supported | Windows 7, Windows XP, Windows Vista, Mac OS X 10.10, Mac OS X 10.9, Mac OS X 10.8, Mac OS X 10.7, Mac OS X 10.6, Mac OS X 10.5, Mac OS X 10.4 (upon request) and Linux (upon request) |
| Operating Temperature | Min/max operating temperature: 15° / 30° C (59° / 86° F) |
| Warranty | Printer, print head: 1-year warranty, limited to 500 000 passes, subject to observance of specific conditions and use of Evolis genuine consumables. Use Evolis Genuine products for best performance and extended lifespan of your printer. |
