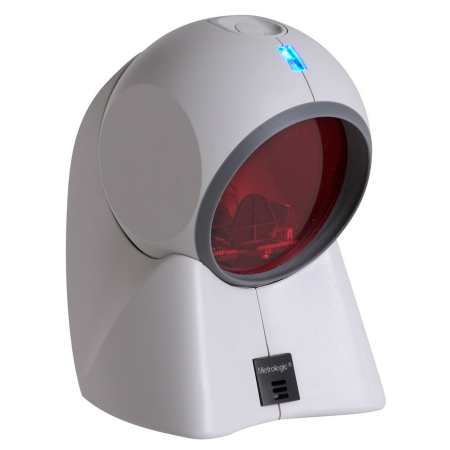

Honeywell Orbit 7120 Omnidirectional Laser Barcode Scanner
Part Number: DED-ORBIT-7120
...
Code: DED-ORBIT-7120
Honeywell Orbit 7120 Omnidirectional Laser Barcode Scanner
Honeywell's Orbit 7120 omnidirectional scanner—the all-time, best-selling hands-free omnidirectional laser scanner—is an innovative, elegant and affordable solution for convenience retail applications where counter space is at a premium. Recipient of multiple design honors, the Orbit omnidirectional scanner has an award-winning shape that enables hand-held scanning of large, bulky items. This laser scanner offers an omnidirectional pattern scan line which provides aggressive presentation scanning. The scanner also has an adjustable head to target scanning for larger products.
Features
- Omni-directional laser scanner with 8.5" range
- 20 line scan pattern
- Counter or wall mounting options
- MetroSET™ software configuration
- Bits 'n' Pieces™ data editing software
- MetrOPOS™ and JavaPOS™ compatible
- RS232C or Keyboard Wedge interface
- Programmable depth of field
Options
- MX009 RS232C to USB Converter
- Specialist host connection cables
Specifications
| Light Source | Visible Laser Diode 650 nm ± 10 nm |
| Supported Barcodes | Autodiscriminates all standard 1-D and RSS-14 bar codes; for other symbologies call Metrologic |
| Depth Of Field | 0mm to 215mm for 0.33mm barcodes |
| View/Width Of Field | 60mm at face 105mm at 216mm |
| Scan Pattern | 5 fields of 4 parallel lines (omnidirectional) |
| Minimum Element Width | 0.13mm |
| Roll, Pitch, Yaw | 360°, 60°, 60° |
| Interface | PC Keyboard Wedge, RS232 Serial , OCIA, Light Pen Emulation, IBM, Stand Alone Keyboard, USB |
| Input Voltage | 5VDC |
| Battery Life | |
| Software Drivers | |
| Dimensions (W x D x H) | 80mm (Orb), 102mm (Base) x 105mm x 150mm |
| Weight | 410g |
Specification
| Manufacturers Part Number | DED-ORBIT-7120 |
|---|---|
| Brand | Honeywell |
