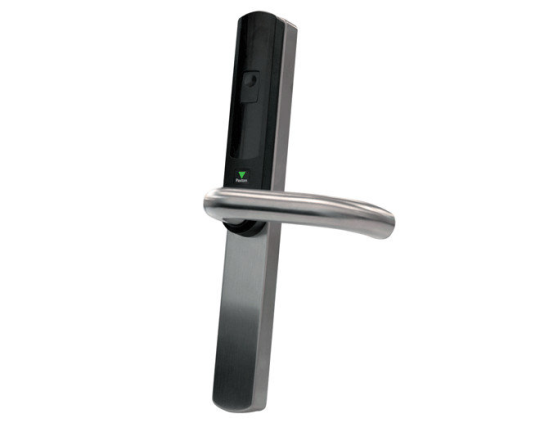

Paxton 901-272 Net2 Paxlock MIFARE® 72MM Euro

Paxton 901-272 Net2 Paxlock MIFARE® 72MM Euro

• Battery - pack of 4 AA alkaline 1.5V cells
• Fitting kit - Paxton Lock
• Packaging - box insert - Paxlock for icc-bx03
• Packaging - box OD 352x195x60mm paxlock & panel (bde)
• Label - product serial number label 27x10mm
• Label - Tech support international
• Label - Void if seal is broken, 80x30mm
• Sales Code label, 30x20mm, Paxton EU
• PaxLock drilling template
• PaxLock - 19mm dia. handles, boxed
• PaxLock- Drive follower bar assy, 8mm with pin
• PaxLock - Secure assembly
• Secure cover - 72mm offset with foam pad
• PaxLock - MIFARE® , 72mm unsecure side, ver 1.5



Specifications - Net2 PaxLock MIFARE® - 72mm Euro
	min	typ	max	units
System Specification
Max number of ACUs per system			1000
Number of tokens			10000
Access levels			250
Time zones			64
Door open time	1	3	60
Number of events stored on ACU			3584
Battery type		4 x AA
Communication
Carrier frequency		2.4		GHz
Max recommended ACUs per bridge			10
Max USB bridges per system			1
Max Ethernet bridges per system			200
Net2Air wireless range	3		20	m
Environment
Operating temperature	-20		55	°C
Moisture resistance		Medium
Vandal resistance		Low
Fire resistance
EN1634-1:2008 FD30 and FD60
Dimensions - Base unit
Width		40		mm
Height		324		mm
Depth		35		mm
Door thickness supported	35		60	mm
Handle rotation		35		degrees
Backset	35			mm
Dimensions - Includes handle clearance
Width		160		mm
Height		324		mm
Depth		100		mm
