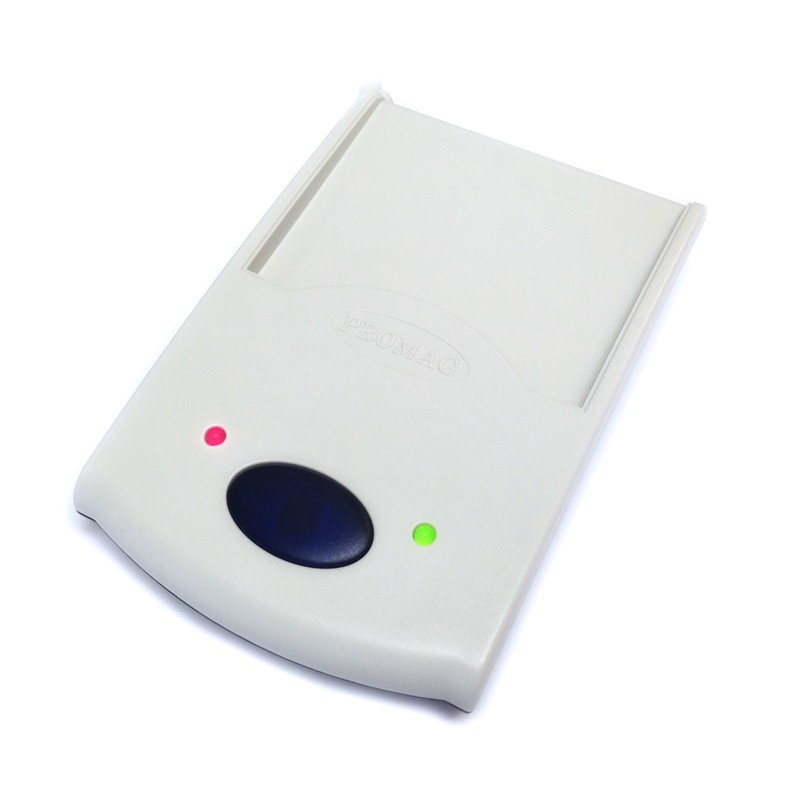

PCR330M - Card Reader
Important Note: You must know the format you need to read the cards in to purchase this product.
This device and similar devices need setting so they read the card correctly for you.
A real Plug and Play device to integrate with Access control or
Identification system with 125Khz or 13.56Mhz ID cards.
Features:
- Plug N Play.
- No need to install driver
- Available to configure output data format
- USB interface
Specification
Model No.
PCR330A 125KHz
PCR330M 13.56MHz
Power requirements 5 V / 200 mA
Interface
USB (keyboard emulation)
Card Type 125KHz EM card or
13.56MHz ISO14443A Mifare
card ,ISO18092 FeLiCa card
Card dimension 86 x 55 x 2 mm maximum
Dimension (mm) W 65 X L 100 X D23 mm
Housing ABS
Weight 115 g
Operating temperature -10 ~ +55° C
Operating relative humidity 10 ~ 90 %
Specification
Manufacturers Part Number | PCR330M-00 |
---|---|
Brand | IDM |
