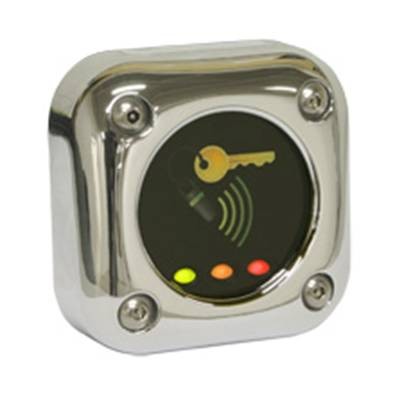

Paxton 390-727 Proximity Metal Reader – Chrome
Part Number: 390-727
...
Code: 390-727
Paxton 390-727 Proximity Metal Reader – Chrome
- Fitting kit - Metal readers and keypads
- Packaging - box insert - readers for icc-bx01 (rki)
- Packaging - box OD 190x175x55mm readers (ne3)
- Label - product serial number label 27x10mm
- Label - Tech support international
- Label - Void if seal is broken, 80x30mm
- Sales Code label, 30x20mm, Paxton EU
- Metalwork - PROXIMITY metal backplate
- PROXIMITY metal reader chrome
| Specifications - Proximity metal reader - Chrome | ||||
| min | typ | max | units | |
| Electrical | ||||
| Operating voltage | 10 | 12 | 14 | V DC |
| Current consumption | 110 | mA | ||
| Carrier frequency | 125 | kHz | ||
| Clock & data bit period | 600 | µs | ||
| System Specification | ||||
| Cable type for extensions | Belden 9540 | |||
| Max cable extension length | 100 | m | ||
| Read range: Keyfob | 40 | mm | ||
| Read range: Token/ISO card | 50 | mm | ||
| Read range: Watchprox | 10 | mm | ||
| Additional coloured covers available | No | |||
| Net2Air compatible | No | |||
| Environment | ||||
| Operating temperature | -35 | 66 | °C | |
| Moisture resistance | IPX7 | |||
| Vandal resistance | High | |||
| Dimensions | ||||
| Cable length | 5 | m | ||
| Width | 76 | mm | ||
| Height | 76 | mm | ||
| Depth | 27 | mm | ||
Specification
| Barcode | 0793720492322 |
|---|---|
| Manufacturers Part Number | 390-727 |
| Brand | Paxton |
