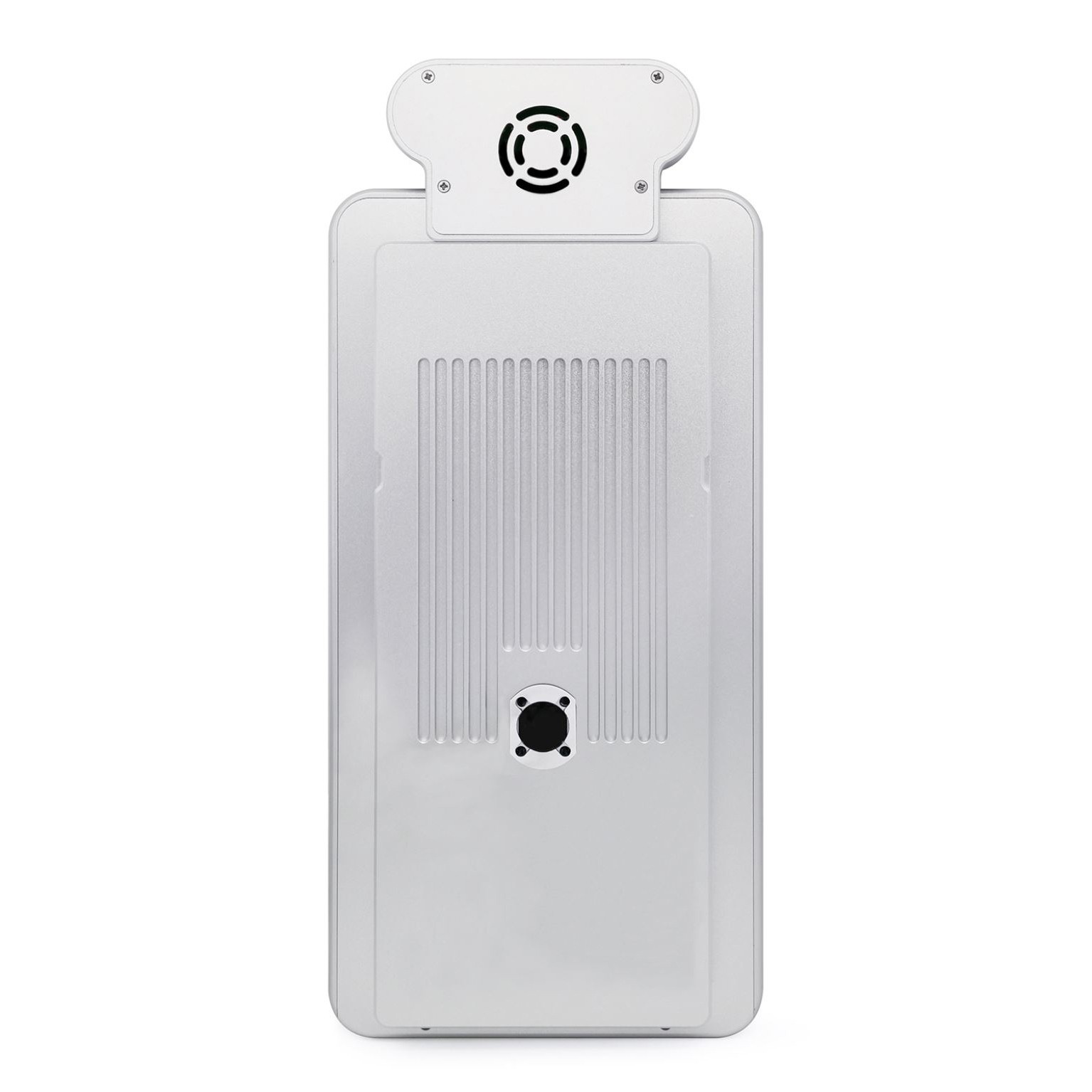

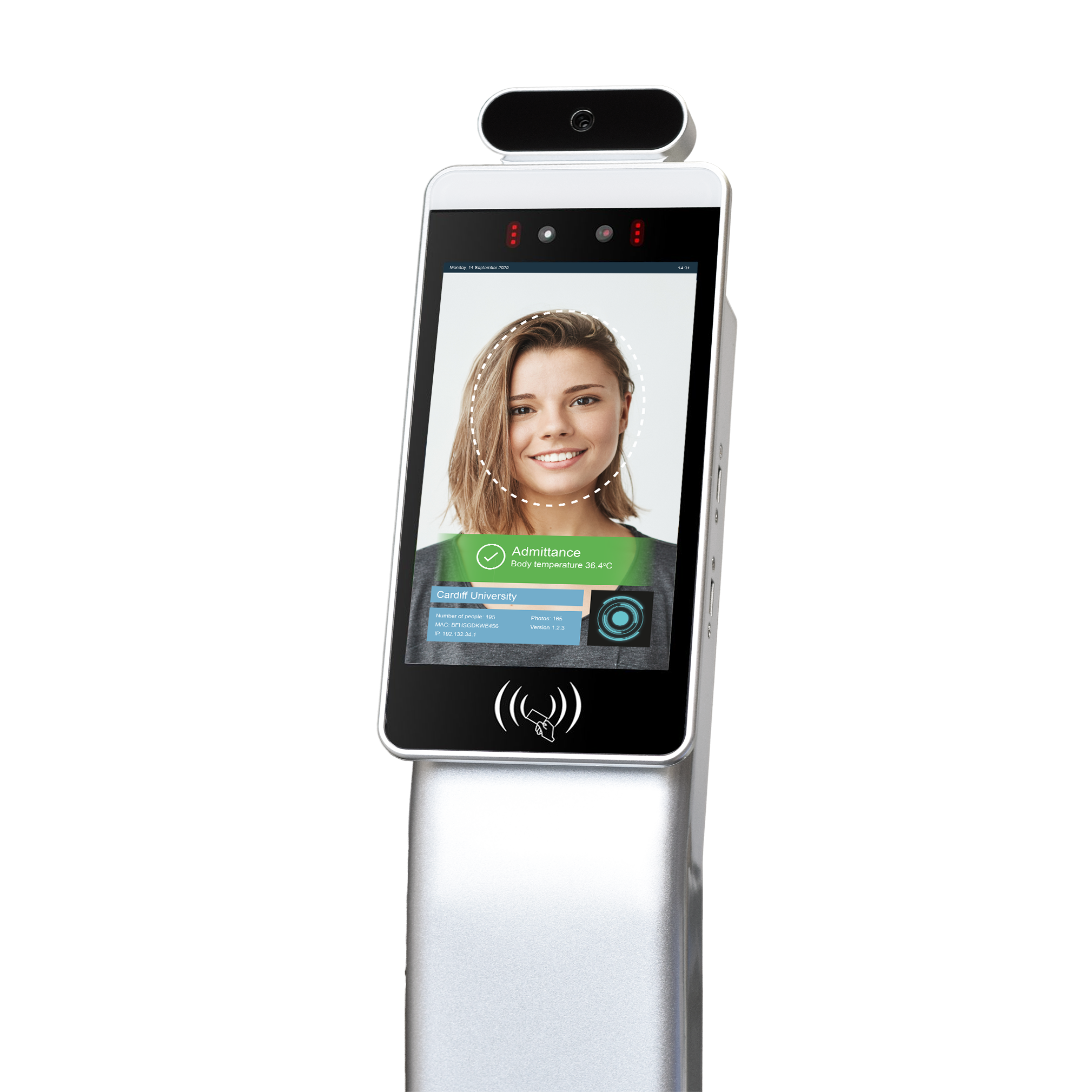

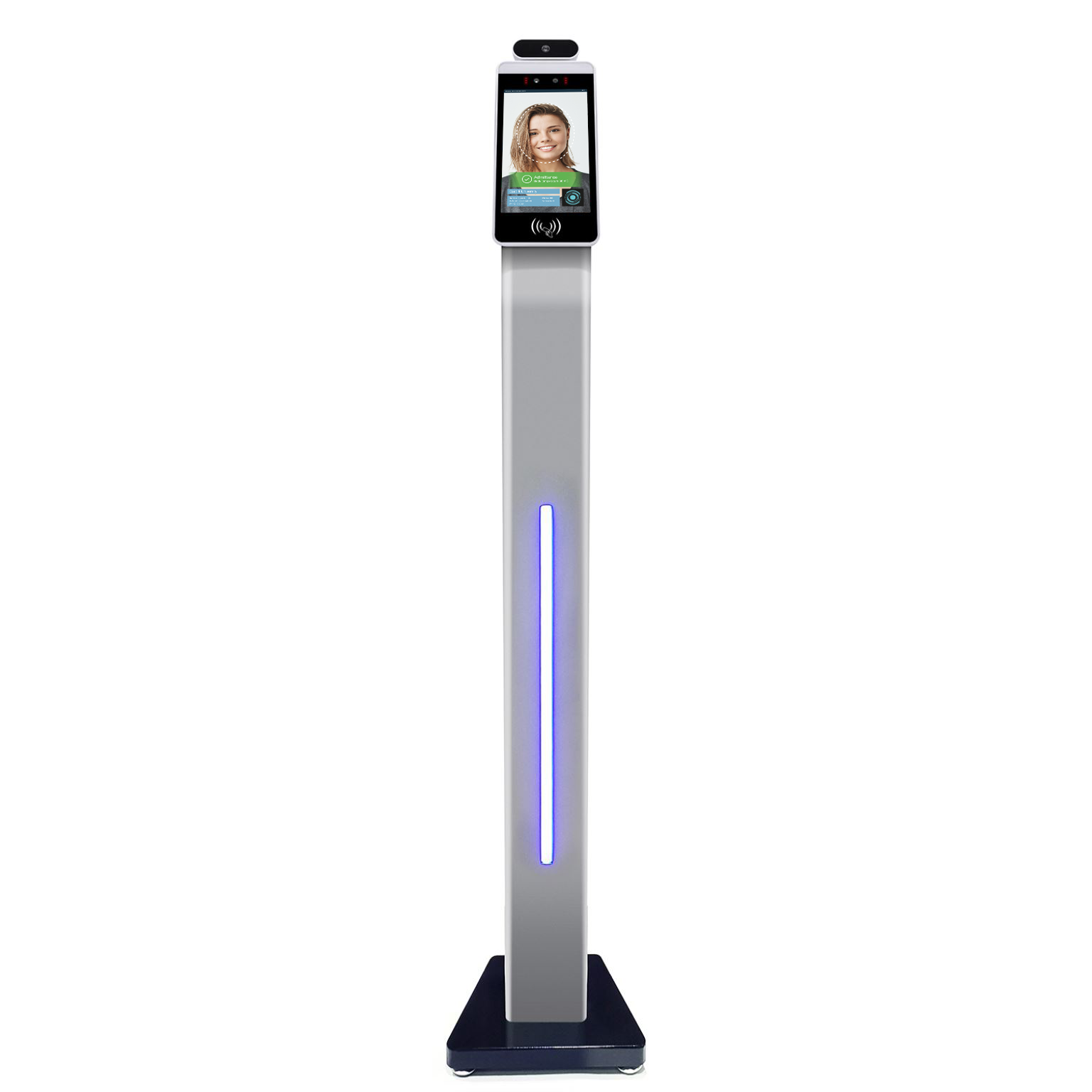

Temperature Screening Kiosk

Ensuring that your staff can safely return to work is now the priority. The temperature screening kiosk features a infrared thermal imaging system which detects the presence of a high temperature quickly and accurately. Its contactless design further ensures maximum defence against germs and viruses and is the best way to ensure staff and visitors do not unwittingly introduce germs and viruses to the workplace.

• Contactless
• Incredibly quick 1-second scan time
• Accuracy within (+-0.5 degrees Celcius)

The temperature screening scanner is the best way of detecting a fever and will be a great tool for adapting to new access control protocols in the post-COVID-19 workplace. It also helps to provide peace-of-mind for those visiting buildings that procedures are in place to avoid the spread of contagious illnesses. Store up to 30,000 records in the database at any given time and unlike other models, this kiosk supports accurate face recognition and comparison while wearing a mask.

Improve Employee Safety & Reduce Risk Fast

Employee & visitor temperature screening has only become more critical as many organisations require return-to-work guidelines and COVID-19 response planning to be in place asap. Temperature screening is seen as an important procedure in all workplaces. You can rely on this temperature screening kiosk to produce an accurate temperature reading, offering an effective method for keeping sick people out of your workplace and installing confidence in those attending the workplace.

Highly Accurate Symptom Screening

When it comes to accuracy, the temperature measurement scanner on this device is superior. This high-performance hardware platform is equipped with an industrial-class binocular camera, live face recognition technology and infrared thermal imaging module to support face-with-mask identity.

Camera

• Resolution: 2 million pixels
• Type: Binocular wide dynamic camera
• Aperture: F2.4
• Focusing distance: 50-150cm
• White balance: auto
• Photo floodlight: LED and IR dual photoflood light

Screen

• Size: 8.0 inch IPS LCD screen
• Resolution: 800×1280
• Touch: Not supported (optional support)
• Processor CPU: RK3288 quad-core (optional RK3399 six-core, MSM8953 eight-core)
• Storage: EMMC 8G

Interface

• Network module: Ethernet and wireless (WIFI)
• Audio: 2.5W / 4R speakers
• USB: 1 USB OTG, 1 USB HOST standard A port
• Serial communication: 1 RS232 serial port
• Relay output: 1 door open signal output
• Wiegand: One Wiegand 26/34 output, one Wiegand 26/34 input
• Upgrade button: Support Uboot upgrade button
• Wired network: 1 RJ45 Ethernet socket

Function

• Credit card reader: None (optional IC card reader, ID card, ID card)
• Face Detection: Supports detection and tracking of multiple people at the same time
• Face library: Up to 30,000 records
• 1: N face recognition: Support
• 1: 1 face comparison: Support
• Stranger detection: Support
• Identify distance configuration: Support
• UI interface configuration: Support
• Upgrade remotely: Support
• Interface: Interfaces include device management, personnel/photo management, record query, etc.
• Deployment method: Support public cloud deployment, privatized deployment, LAN use, stand-alone use
• Infrared Thermal Imaging Module
• Temperature detection: Support
• Temperature detection distance: 1 meter (optimal distance 0.5 meter)
• Temperature measurement accuracy: ≤ ±0.5?
• Temperature measurement range: 10?~42?
• Thermal field of view: 32 X 32?
• Visitors' temperature is normal and released directly: Support
• Abnormal temperature alarm: Support

General Parameters

• Power: DC12V(±10%)
• Operating temperature: 0?~60?
• Storage temperature: -20?~60?
• Power consumption: 13.5W(Max) Installation method: Gate bracket installation
• Size: Standard:274.24*128*21.48(mm)
