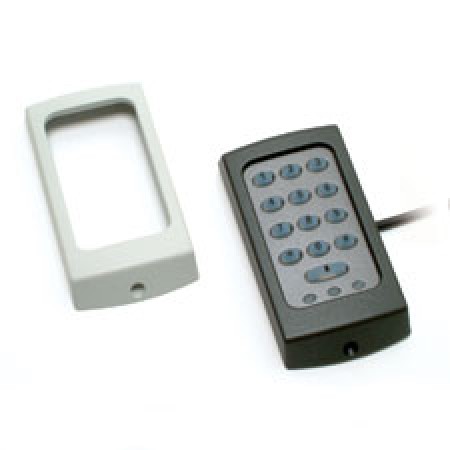

Paxton 351-110 Touchlock Keypad - K50
- Plastic - Keypad clip on cover 50mm - Black
- Plastic - Keypad clip on cover 50mm - White
- Fitting kit - P50 and cardreader
- Packaging - box insert - readers for icc-bx01 (rki)
- Packaging - box OD 190x175x55mm readers (ne3)
- Label - product serial number label 27x10mm
- Label - Tech support international
- Label - Void if seal is broken, 80x30mm
- Sales Code label, 27x20mm, Paxton EX, CE, Ctick
- K50 keypad module
Specifications - TOUCHLOCK keypad - K50 | ||||
min | typ | max | units | |
Electrical | ||||
Operating voltage | 10 | 12 | 14 | V DC |
Current consumption | 50 | 120 | mA | |
Clock & data bit period | 600 | µs | ||
System Specification | ||||
Cable type for extensions | Belden 9540 | |||
Max cable extension length | 100 | m | ||
Backlit | Yes | |||
Additional coloured bezels available | Yes | |||
Environment | ||||
Operating temperature | -35 | 66 | °C | |
Moisture resistance | IPX7 | |||
Vandal resistance | Low | |||
Dimensions | ||||
Cable length | 5 | m | ||
Width | 50 | mm | ||
Height | 100 | mm | ||
Depth | 15 | mm | ||
Specification
Barcode | 0793720494050 |
---|---|
Manufacturers Part Number | 351-110 |
Brand | Paxton |
